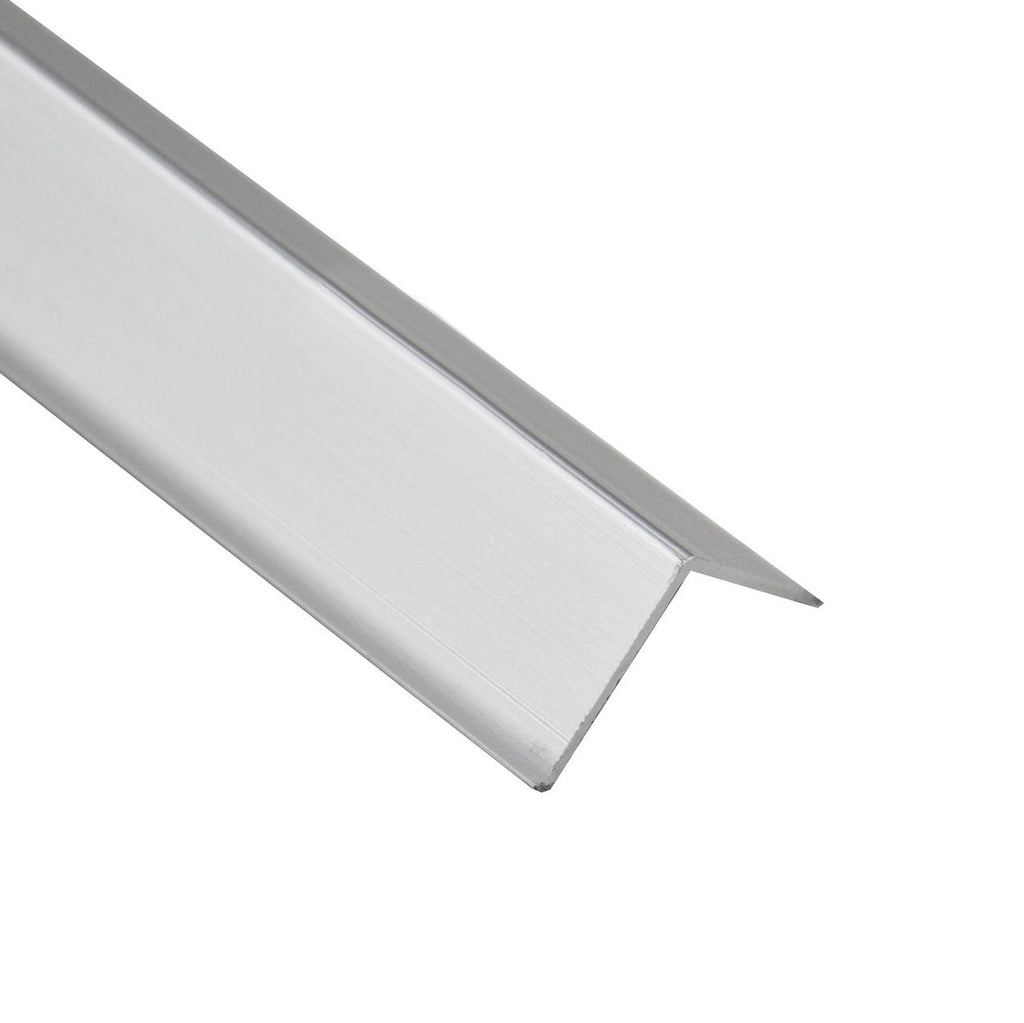

Aluminum Interlocking Slatwall Finishing Angle – 6063-T5

Length 48" 72" 96" 144"

Finish

Mill Finish

Clear Anodized

Black Powder Coated

White Powder Coated

Product Overview

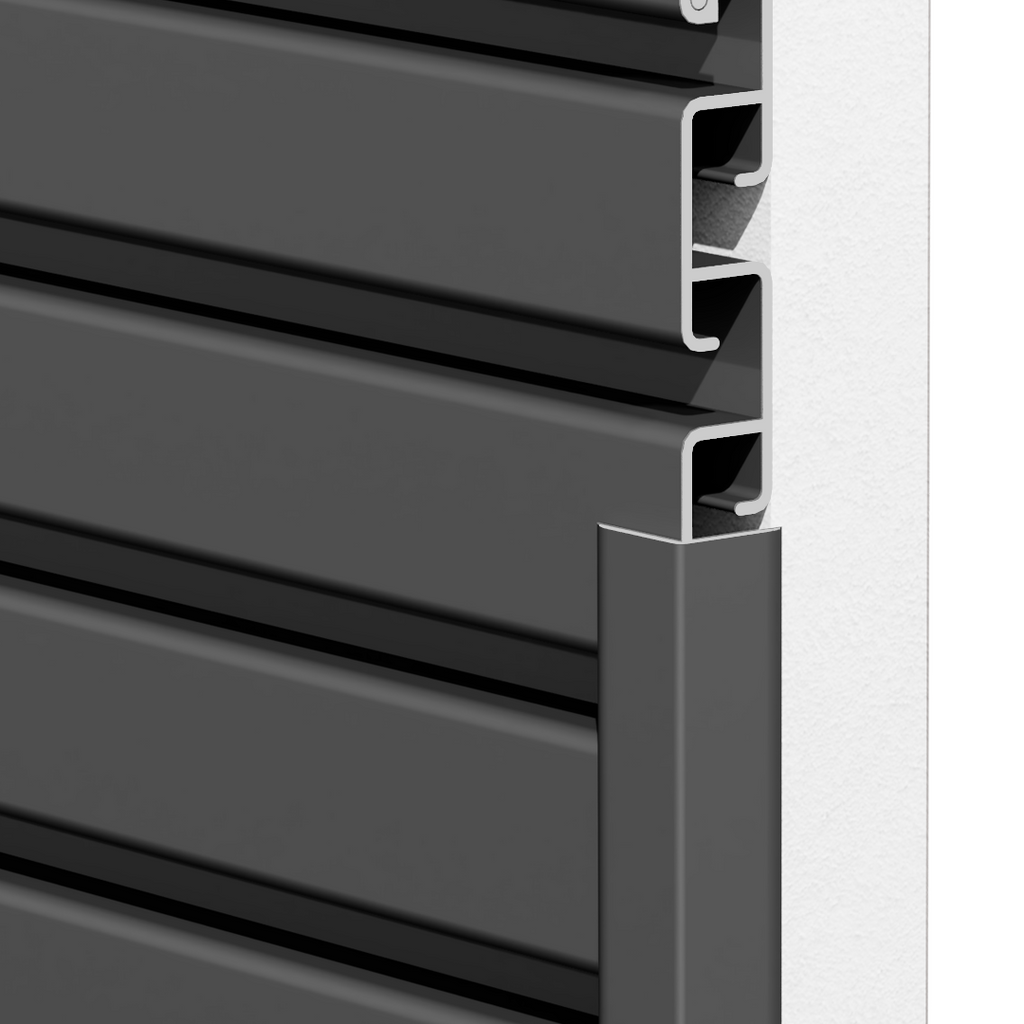

Aluminum Interlocking Slatwall Finishing Angle – 6063-T5 is an architectural aluminum perimeter finishing angle designed to cap and frame the exterior edges of interlocking aluminum slatwall panel installations. Extruded from architectural 6063-T5 aluminum, this clean border trim conceals raw panel cut edges, provides a smooth framed transition to surrounding walls, and protects panel perimeters against heavy impact.

Features & Benefits

Perimeter Framing & Edge Protection: Caps raw cuts and exterior corners of interlocking aluminum slatwall panel assemblies.
Flush Architectural Integration: Creates a neat, professional picture-frame border around slatwall feature walls.
Durable 6063-T5 Aluminum: Provides high impact resistance and long-lasting corrosion protection.
Fast, Easy Installation: Fastens securely with standard architectural screws, rivets, or mounting adhesives.
Matching Finishes & Lengths: Offered in 48", 72", 96", and 144" lengths in Mill Finish, Clear Anodized, Black Powder Coat, and White Powder Coat.

Technical Specifications

Product SKU	SWIFA63
Material / Alloy	6063-T5
Width	5/8"
Height	5/8"
Thickness	1/16"
Available Finishes	Mill Finish, Clear Anodized, Black Powder Coated, White Powder Coated
Specification Met	ASTM B221-14
Yield Strength	16k PSI-1
Hardness	Brinell 55
Country of Origin	United States of America
