Aluminum Interlocking Slatwall Panel – 6063-T5

Cut Length 48" 72" 96" 144"

Finish

Mill Finish

Clear Anodized

Black Powder Coated

White Powder Coated

Product Overview

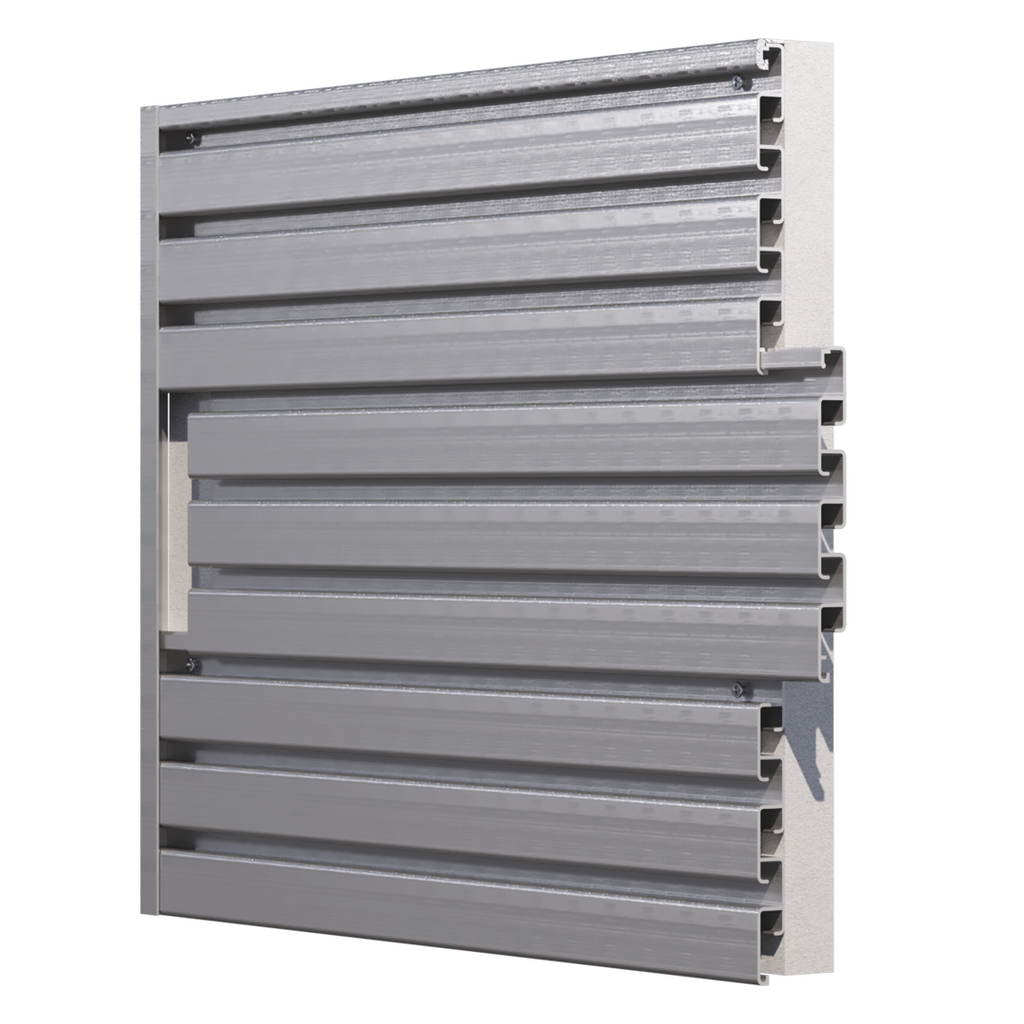

Aluminum Interlocking Slatwall Panel – 6063-T5 is an all-aluminum modular interlocking wall panel engineered for heavy-duty retail displays, commercial showrooms, and modular garage storage systems. Manufactured from structural 6063-T5 aluminum with integrated T-channels, these panels lock together horizontally to create continuous, indestructible slatwall surface areas that support immense weight loads.

Features & Benefits

Heavy-Duty All-Aluminum Wall System: Eliminates moisture warping, chipping, or blowout common in conventional wood or MDF slatwall.
Continuous Interlocking Panels: Tongue-and-groove horizontal joints conceal mounting fasteners for a seamless structural wall.
Standard Accessory Compatibility: Integrated T-slots accept all standard 3" on-center retail slatwall hooks, baskets, brackets, and bins.
Architectural 6063-T5 Aluminum: Superior strength-to-weight ratio with exceptional resistance to impacts, corrosion, and heavy loads.
Extensive Finishes & Lengths: Supplied in 48", 72", 96", and 144" lengths in Mill Finish, Clear Anodized, Black Powder Coat, and White Powder Coat.

Technical Specifications

Product SKU	SWI63
Material / Alloy	6063-T5
Fits	3/8"
Width	1/2"
Height	5-7/32"
Thickness	1/16"
Available Finishes	Mill Finish, Clear Anodized, Black Powder Coated, White Powder Coated
Specification Met	ASTM B221-14
Yield Strength	16k PSI-1
Hardness	Brinell 55
Country of Origin	United States of America
