Aluminum Millwork Flanged F Reveal Trim – 1" Panel – 1/2" Reveal – 6063-T5

Cut Length 48" 72" 96" 144"

Finish

Mill Finish

Clear Anodized

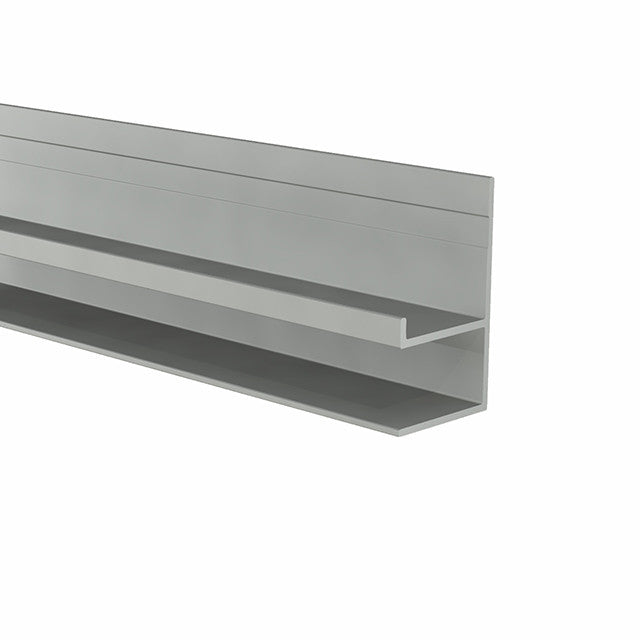

Aluminum Millwork Flanged F Reveal Trim – 1" Panel – 1/2" Reveal – 6063-T5 is an architectural-grade extruded aluminum millwork profile designed to create clean transitions, perimeter edge terminations, and intentional shadow reveals in modern commercial casework and paneling. Precision-extruded from structural 6063-T5 alloy engineered specifically for 1" panels with an integrated 1/2" reveal, this profile protects panel edges against chipping and impact while establishing crisp, laser-straight architectural shadow lines across casework, millwork, and wall panel assemblies.

Key Features & Performance Benefits

Architectural 6063-T5 Aluminum: Precision-extruded heat-treated alloy engineered for sharp corner definition, structural rigidity, and enduring corrosion resistance.
Engineered Panel Fit: Designed to fit 1" architectural wood, MDF, laminate, acoustic, or composite panels with a precise, snug fit.
Crisp Architectural Reveal: Establishes clean 1/2" shadow lines and controlled panel boundaries for high-end commercial interiors.
Edge & Corner Protection: Encapsulates and shields raw panel edges from chipping, moisture ingress, and daily wear in high-traffic environments.
Architectural Finishes: Available in Mill Finish and Clear Anodized to complement modern millwork finishes and commercial hardware.
Made in USA: Domestically extruded to meet rigorous ASTM manufacturing standards for consistent metallurgical composition and tight dimensional tolerances.

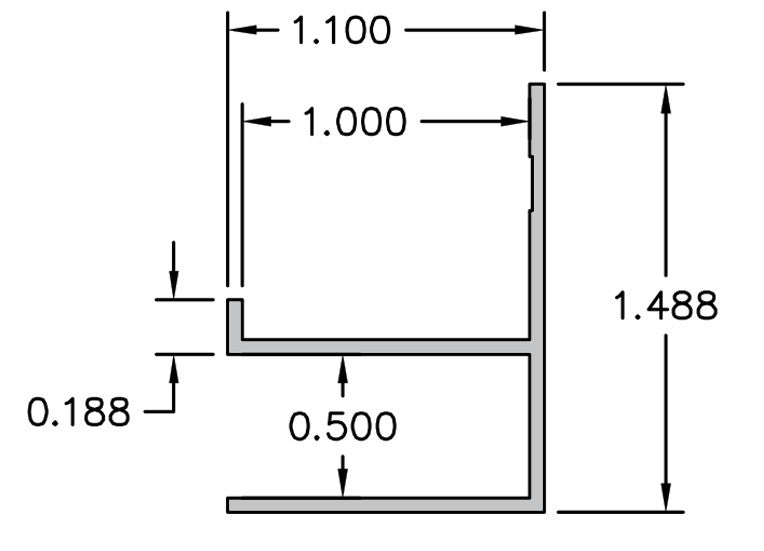

Technical Specifications

Product SKU	FF6310000500
Material / Alloy	6063-T5
Profile Style	F Reveal Trim
Fits Panel Thickness	1"
Reveal Dimension	1/2"
Height	1-1/2"
Width	1-1/8"
Wall Thickness	1/16"
Available Finishes	Mill Finish,Clear Anodized
Specification Met	ASTM B221-14
Hardness	Brinell 55
Yield Strength	16k PSI-1
Country of Origin	United States of America

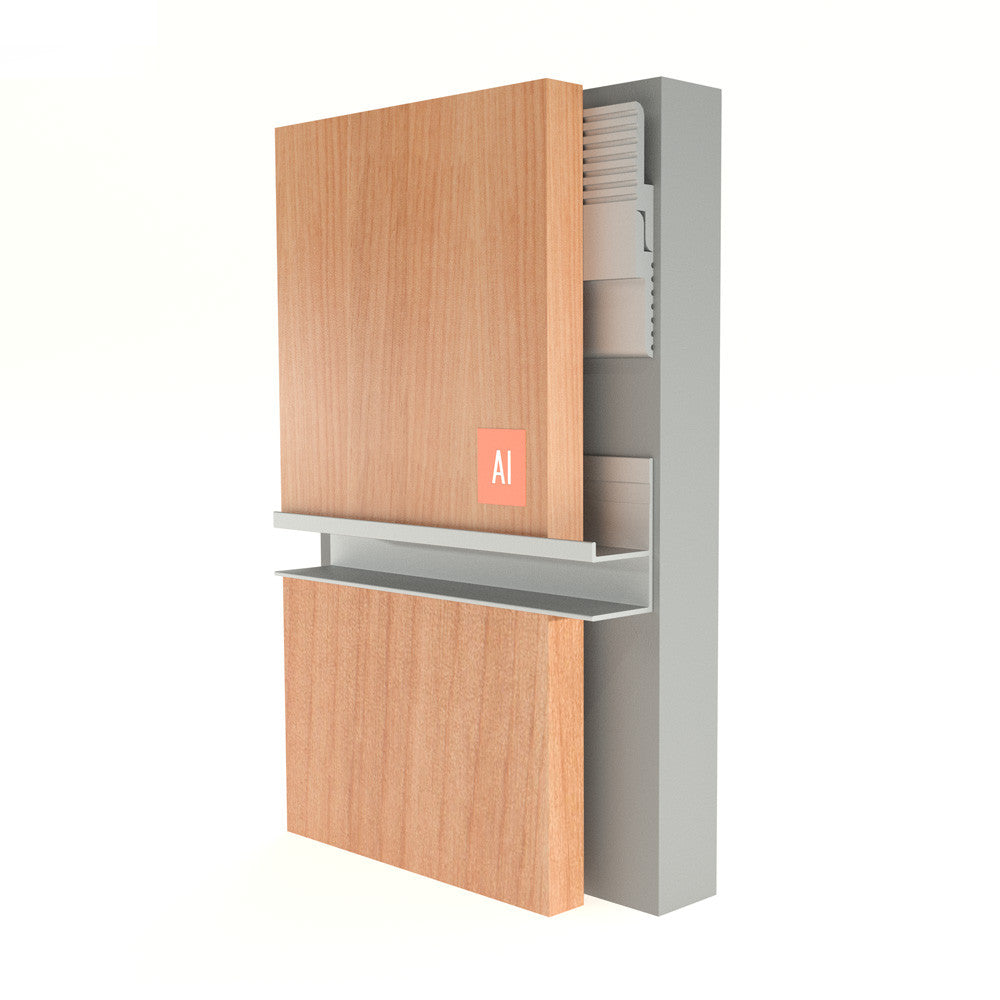

Common Applications

Architectural millwork, custom cabinetry, display casework, and reception desks.
Commercial wall paneling, acoustic wood slat systems, and decorative wainscoting.
Perimeter ceiling and base transitions in high-end office and hospitality interiors.
Retail store fixtures, point-of-purchase displays, and trade show casework.
Modular interior wall partitions, cleanroom wall protection panels, and elevator interior surrounds.
