Aluminum Overlap Edge Trim – Covers 3/4" – 3/8" Reveal – 15/16" Radius – 6063-T5

Cut Length 72" 144"

Finish

Clear Anodized

Brite-Dip Anodized

Product Overview

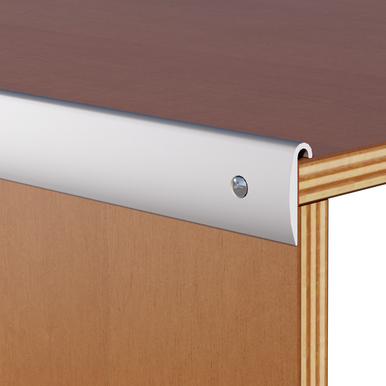

Aluminum Edge Trims and J Channels are heavy-duty, precision-extruded profiles designed to cap, protect, and frame the exposed edges of architectural panels, glass, plywood, drywall, acoustic baffles, and modular interior partitions. Featuring a clean edge design, these extrusions prevent edge damage, enhance impact resistance, and deliver an attractive, finished architectural border.

Features & Benefits

Edge Protection: Encases and shields delicate panel and substrate edges from chipping, moisture, and impact damage.
Clean Architectural Border: Provides crisp, modern framing lines for visible transitions and aesthetic finishes.
Premium Aluminum Alloy: Extruded from high-grade 6063-T5 aluminum for maximum structural rigidity and corrosion protection.
Versatile Compatibility: Ideal for commercial fixtures, millwork, retail displays, cleanrooms, and interior signage.
American Made: Manufactured to meet rigorous ASTM B221-14 dimensional and structural specifications.

Technical Specifications

Product SKU	ETO6307500375
Alloy & Temper	6063-T5

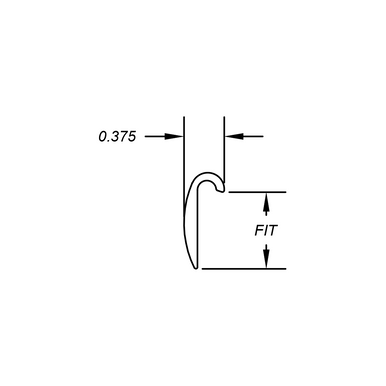

Width	3/8"
Height	15/16"
Wall Thickness	1/16"
Fits / Covers	3/4''
Reveal	3/8"
Radius	15/16"
Available Finishes	Clear Anodized,Brite Dip Anodized
Specification Met	ASTM B221-14
Yield Strength	16k PSI-1
Hardness	Brinell 55
Compliance	RoHS 3 (2017/2102/EU) Compliant; REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant; Specialty Metals COTS-Exempt
Country of Origin	United States of America
