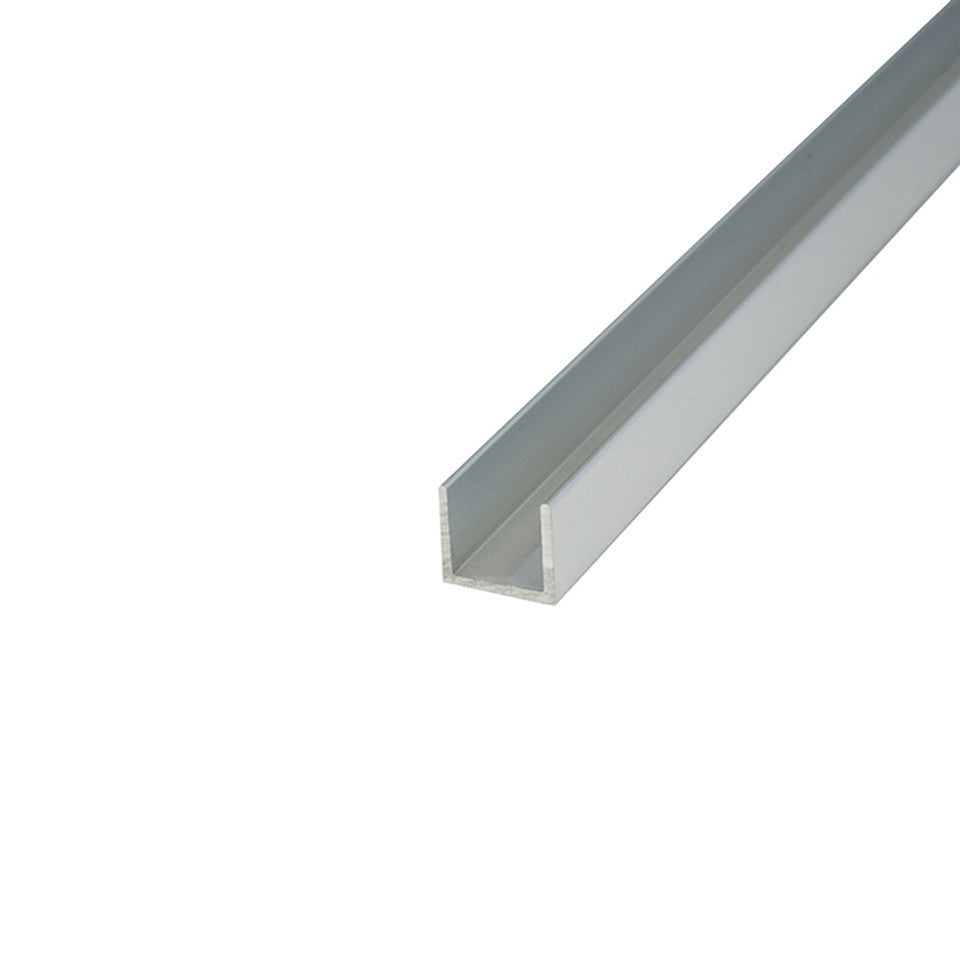

Economy Slide Track Single Drop-In Channel – 1/2" Channel – 6063-T5

Economy Slide Track Single Drop-In Channel – 1/2" Channel – 6063-T5 is a precision structural aluminum extrusion engineered for custom sliding and bypass door installations in architectural millwork, commercial showcases, and institutional cabinetry. Extruded in the USA from structural 6063-T5 aluminum, it provides rigid channel alignment, superior wear resistance, and clean metallic sightlines.

Key Features & Performance Benefits

• Structural Channel Alignment: Maintains rigid, true tracking tolerances across long spans without warping or twisting.
• Premium 6063-T5 Aluminum: Engineered for superior dimensional stability, machinability, and lasting load support.

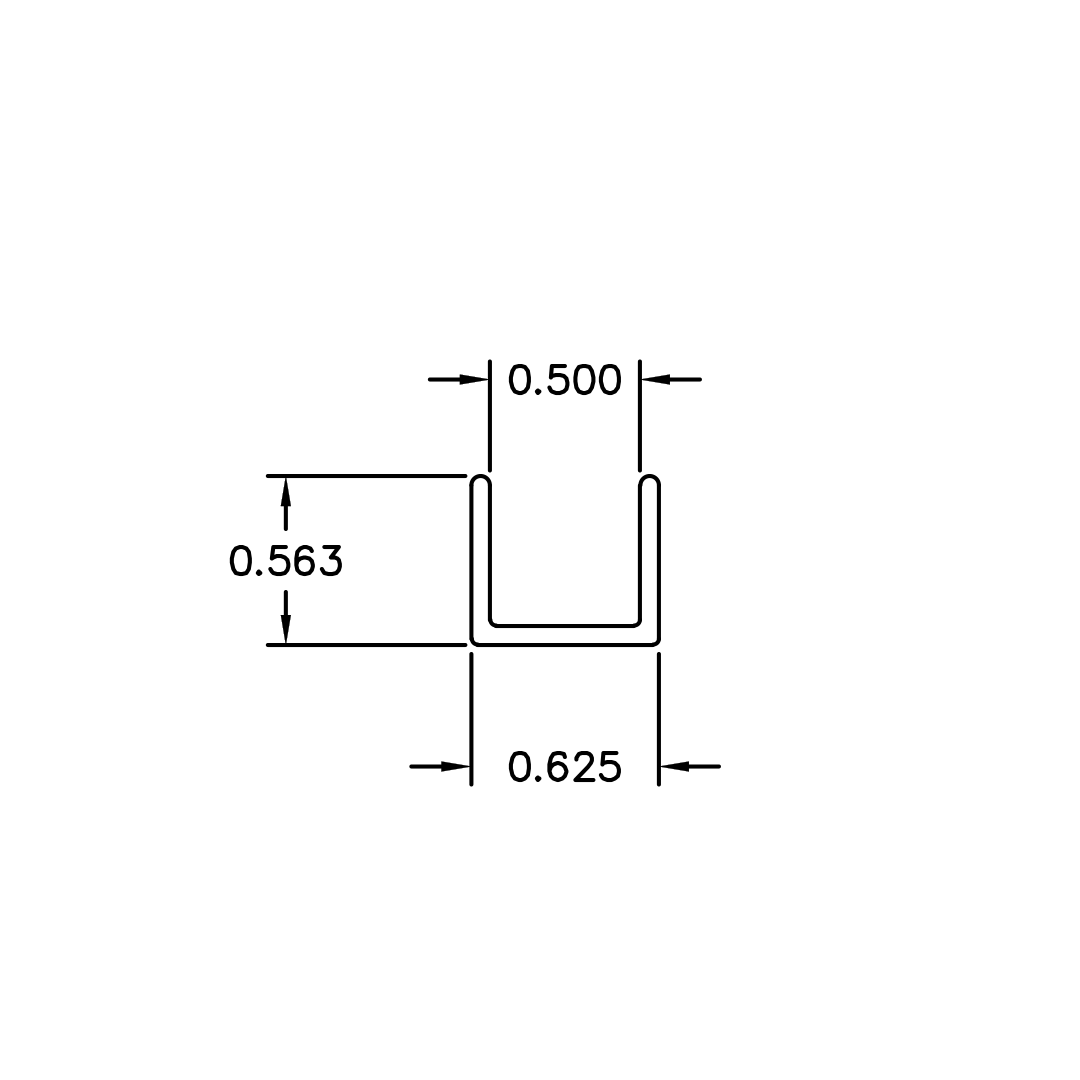

• Dimensional Precision: Features 5/8" width and 9/16" height with 1/16" wall thickness for exact component integration.

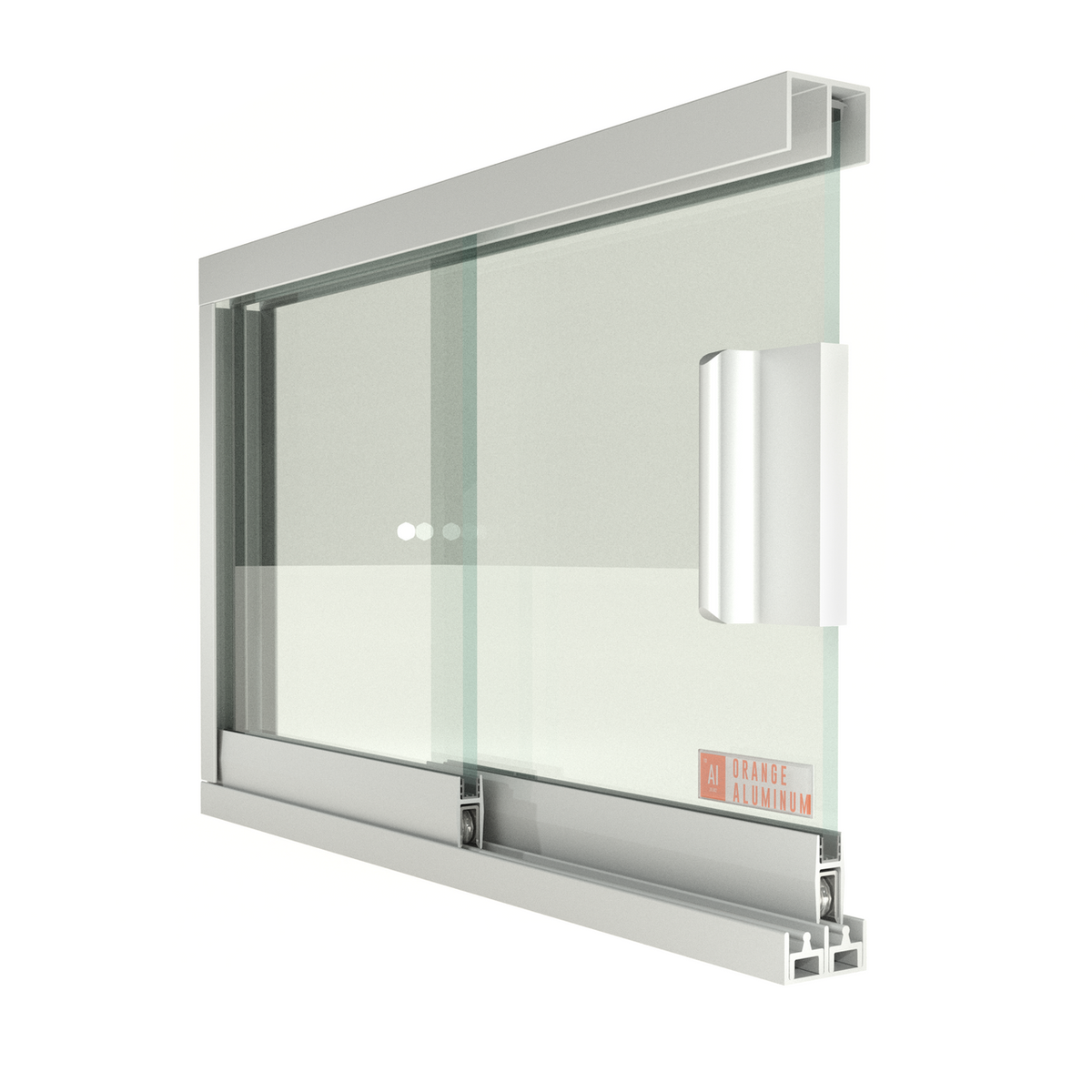

• Versatile Track Integration: Functions as a dedicated overhead header, drop-in lower base, or vertical perimeter jamb within modular sliding door systems.
• Corrosion-Resistant Architectural Finishes: Stocked in Clear Anodized and Black Anodized to complement modern interior aesthetics.

Technical Specifications

Common Applications

• Commercial glass display showcases and retail merchandising fixtures.
• Bypass sliding cabinet doors for residential kitchens, baths, and closets.
• Institutional display cases, trophy cabinets, and museum vitrines.
• Medical, dental, and laboratory pass-through windows and sliding partitions.
• Custom architectural casework, audio/video credenzas, and office millwork.
